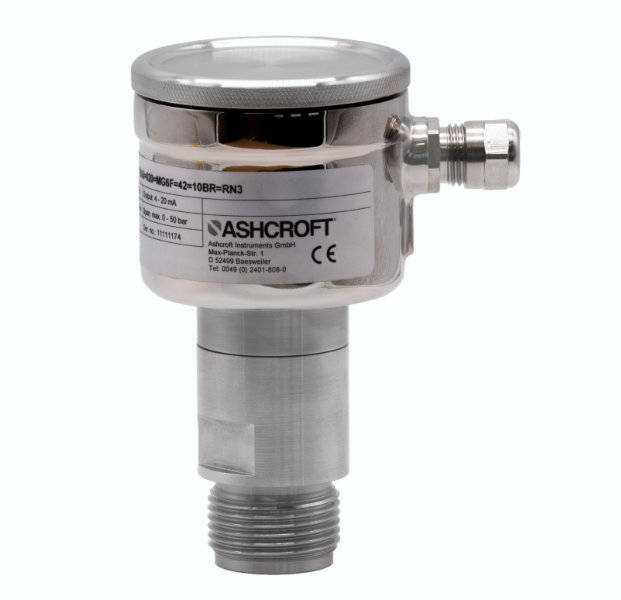

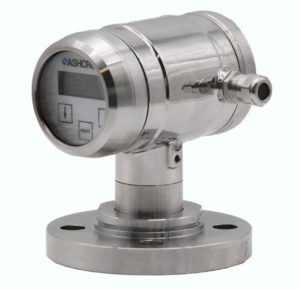

PB55 Process Pressure Transmitter Bronze Series
PB55 Process Pressure Transmitter Bronze Series
ASHCROFT® Bronze Series Process Pressure Transmitters are used worldwide for continuous data Acquisition in the oil & gas, chemical, power, water and waste water industries.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
The Ashcroft® Bronze Series Process Pressure Transmitter is the solution to your process application pressure measurement needs.
Downloads
Data Sheets
Declaration of Conformity
Industry Brochures
ASHCROFT® Bronze Series Process Pressure Transmitters are used worldwide for continuous data acquisition in the oil & gas, chemical, power, water and waste water industries.
Key Features
316L stainless steel enclosure provides uncompromising protection
Expanded selection of pressure and electrical connections
Strong flush mounted diaphragm
Active temperature compensation
Zero and span adjustment
Markets & Applications
Chemical and Petrochemical
Energy
Water and Wastewater
Oil and Gas
Display
Digital local display with several options (optional)
Process Connection Location
Lower
Output Signal
4-20 mA (2-wire)
Mounting
Stem
Surface
2" pipe mounting
Electrical Termination
1/2 NPT female
M20x1.5 female
Hirschmann EN 175301-803 Form C
M12 Hirschmann® 993-172-100
Stainless steel cable gland
Dampening
Digital by firmware setting
Process Connection Style
Threaded with flush diaphrahm
Ranges
Vacuum
Compound
0.1 ... 80 bar (4:1 turndown)
Accuracy
0.2% of adjusted range
Wetted Parts Material
Hastelloy C
Stainless steel 316L (1.4404)
Pressure Type
Gauge pressure
Absolute pressure
Ingress Protection
IP66
IP68
Case or Body Material
Stainless steel 304 (1.4301)
Stainless steel 316L (1.4404)
