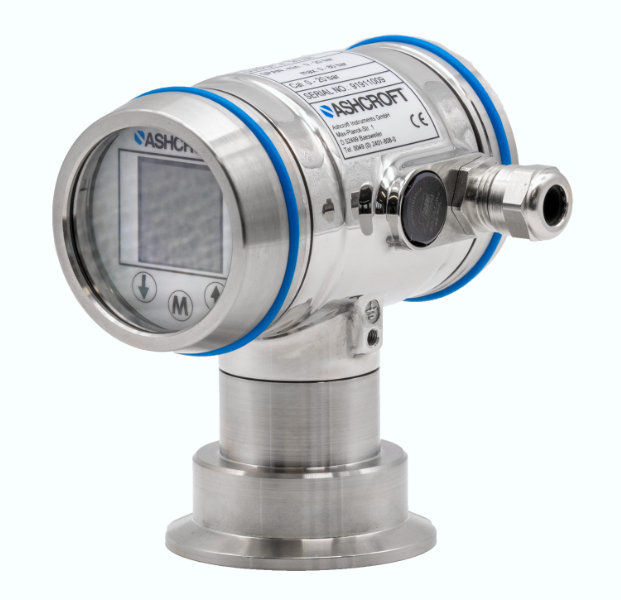

CS55 Pressure Transmitter Silver Series CleanLine

CS55 Pressure Transmitter Silver Series CleanLine

ASHCROFT® Silver Series CleanLine Pressure Transmitters are used worldwide for continuous data Acquisition in the food and beverage, biotechnology and pharmaceutical industries.
ASHCROFT® Silver Series CleanLine Pressure Transmitters are used worldwide for continuous data Acquisition in the food and beverage, biotechnology and pharmaceutical industries.

Key Features

Strong flush mounted diaphragm

316L stainless steel enclosure provides uncompromising protection

Active temperature compensation

Expanded selection of pressure and electrical connections

Selection of wetted materials

HART® DTM available for Microsoft Windows® OS

Easy local adjustments using 3 pushbuttons

Markets & Applications

Pulp and Paper

Food and Beverage

Biotech

Pharmaceuticals

  • Specifications
  • Downloads

Process Connection Location

Lower

Mounting

Stem

Surface

2" pipe mounting

Display

Digital local display with several options

Dampening

Digital by firmware setting

Process Connection Style

Tri-Clamp® (DIN 32676-A/B/C)

VARIVENT®

Milk coupling (DIN 11851)

SMS 1145

Flange according to ASME B16.5

RTJ APV (BS 4825-5)

Flange according to EN 1092-1

IDF (BS 4825-4)

Ranges

0.1 ... 100 bar (4:1 turndown)

Vacuum

Compound

Output Signal

4-20 mA (2-wire)

HART® protocol (optional)

Wetted Parts Material

Tantalum

Gold plated

Hastelloy C

Stainless steel 316L (1.4404)

Accuracy

0.1% of adjusted span

0.2% of adjusted range

Process Connection Size

1" ... 3"

DN25 ... DN80

Ingress Protection

IP66

IP68

Case or Body Material

Stainless steel 316L (1.4404)

Stainless steel 304 (1.4301)

Pressure Type

Absolute pressure

Gauge pressure

Electrical Termination

1/2 NPT female

M20x1.5 female

Hirschmann EN 175301-803 Form C

M12 Hirschmann® 993-172-100

Stainless steel cable gland
