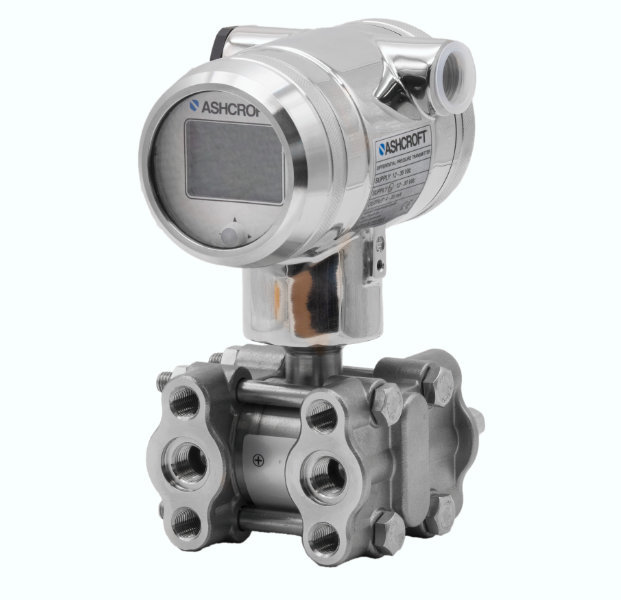

DP55 Differential Process Pressure Transmitter Platinum Series
DP55 Differential Process Pressure Transmitter Platinum Series
ASHCROFT® Platinum Series Differential Process Pressure Transmitters are used worldwide for continuous data Acquisition in the oil & gas, chemical, power, water and waste water industries.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
The Ashcroft® Platinum Series Differential Pressure Transmitter is the solution to your process application pressure measurement needs.
Downloads
Data Sheets
Declaration of Conformity
Industry Brochures
The ASHCROFT® DP55 Platinum Series Differential Process Pressure Transmitters are used worldwide for surpreme accuracy ontinuous data Acquisition in the oil & gas, chemical, power, water and waste water industries, optional in hazardous applications.
Key Features
ATEX and IEC Ex approval for hazardouz area (optional)
Rugged stainless steel construction
Strong dual diaphragm
Active temperature compensation
Flow measurement with SQRT function
Simple Push-button menu navigation
HART® DTM available for Microsoft Windows® OS
Markets & Applications
Chemical and Petrochemical
Energy
Oil and Gas
Level and Flow Measurement
Water and Wastewater
Process Connection Location
Lower
Static Pressure
PN160
PN250
Output Signal
4-20 mA (2-wire)
HART® protocol (optional)
PROFIBUS® PA protocol
Mounting
Flush
Stem
Surface
Display
Digital local display with several options
Dampening
Digital by firmware setting
Process Connection Style
Oval flange DIN 61518
Threaded
Electrical Termination
1/2 NPT female
M20x1.5 female
Hirschmann EN 175301-803 Form C
M12 Hirschmann® 993-172-100
Stainless steel cable gland
Ranges
0.01 bar ... 20 bar (up to 20:1 turndown)
Wetted Parts Material
Tantalum
Hastelloy C
Gold plated
Stainless steel 316L (1.4404)
Accuracy
0.075% of adjusted span
Ingress Protection
IP68
IP66
Pressure Type
Differential pressure
Case or Body Material
Stainless steel 304 (1.4301)
Stainless steel 316L (1.4404)
