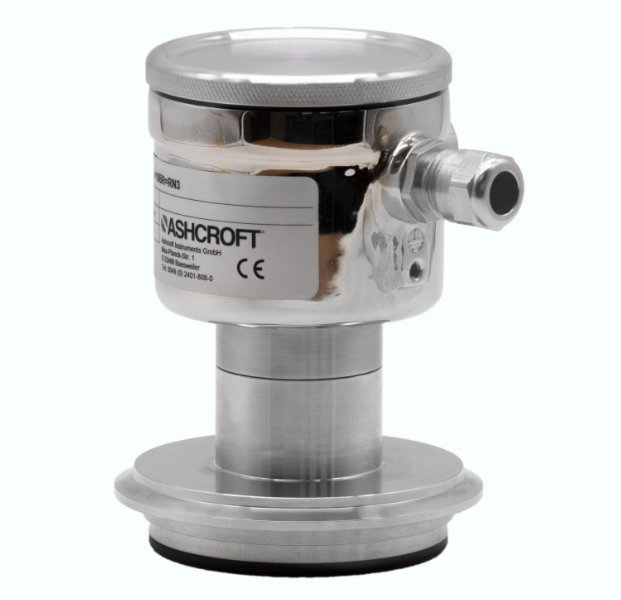

CB55 Pressure Transmitter Bronze Series CleanLine

CB55 Pressure Transmitter Bronze Series CleanLine

ASHCROFT® Bronze Series CleanLine Pressure Transmitters are used worldwide for continuous data Acquisition in the food and beverage, biotechnology and pharmaceutical industries.
ASHCROFT® Bronze Series CleanLine Pressure Transmitters are used worldwide for continuous data acquisition in the food and beverage, biotechnology and pharmaceutical industries.

Key Features

Zero and span adjustment

316L stainless steel enclosure provides uncompromising protection

Expanded selection of pressure and electrical connections

Strong flush mounted diaphragm

Active temperature compensation

Markets & Applications

Food and Beverage

Biotech

Pharmaceuticals

Pulp and Paper

  • Specifications
  • Downloads

Display

Digital local display with several options (optional)

Mounting

Stem

Surface

2" pipe mounting

Dampening

Digital by firmware setting

Process Connection Style

Tri-Clamp® (DIN 32676-A/B/C)

VARIVENT®

Milk coupling (DIN 11851)

SMS 1145

RTJ APV (BS 4825-5)

Flange according to ASME B16.5

IDF (BS 4825-4)

Flange according to EN 1092-1

Ranges

0.1 ... 80 bar (4:1 turndown)

Vacuum

Compound

Wetted Parts Material

Tantalum

Gold plated

Hastelloy C

Stainless steel 316L (1.4404)

Process Connection Size

1" ... 3"

DN25 ... DN80

Output Signal

4-20 mA (2-wire)

Accuracy

0.2% of adjusted range

Ingress Protection

IP68

IP66

Case or Body Material

Stainless steel 304 (1.4301)

Stainless steel 316L (1.4404)

Pressure Type

Gauge pressure

Absolute pressure

Electrical Termination

M12 Hirschmann® 993-172-100

Stainless steel cable gland

1/2 NPT female

M20x1.5 female

Hirschmann EN 175301-803 Form C

Process Connection Location

Lower
