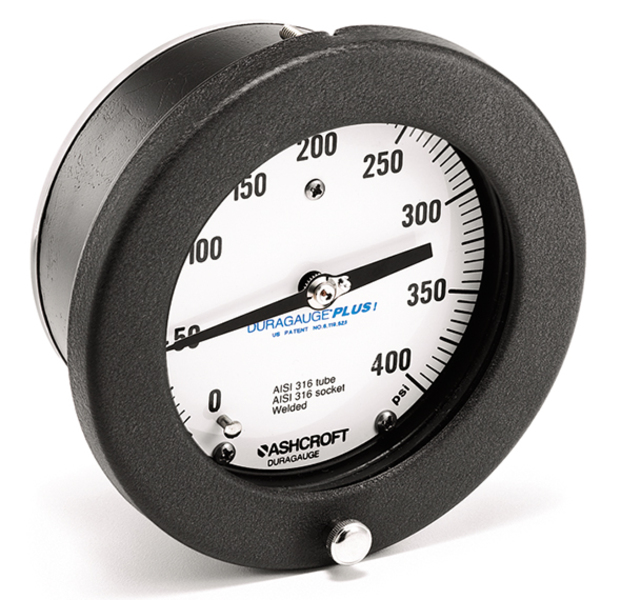

Das Ashcroft® Duragauge® 1377 mit Nenngrößen von 4 1/2″ bis 8 1/2″ ist ein leistungsstarkes Prozessmanometer für Fronttafeleinbau. Das Aluminium-Sicherheitsgehäuse hat eine bruchfeste Trennwand, das Druckmesssystem 10 Jahre Garantie.
Hauptmerkmale
Rotary-Segmentwerk aus Edelstahl 400 mit Teflon®-Beschichtung
Große Auswahl an Rohrfeder- und Federträger-Werkstoffen sowie Messbereichen
Einfach justierbarer Mikrometerzeiger
Frontflansch für Tafeleinbau
PLUS!™ Performance (optional)
Märkte und Anwendungen
Öl und Gas
Erdgastransport und Flüssiggas (LNG)
Offshore-Öl und -Gas
Raffinerie
Wasser und Abwasser
Chemie und Petrochemie
Wasserstrahlschneiden und Hochdruckreiniger
Werkstoff Gehäuse
Aluminium, schwarz emaillierter Frontring, Rückwand Edelstahl
Prozessanschlusslage
Unten
Rückseitig unten
Montageart
Direktmontage
Tafeleinbau
Prozessanschluss Bauart
Geschraubt
Messbereiche
1 ... 2000 bar
Vakuum
Kombinierte Messbereiche
Genauigkeit
0,5% der Messspanne (ASME B40.100 Grade 2A)
Nenngröße
4 1/2"
6"
8 1/2
Dämpfung
PLUS!™ Performance
Drosselschraube
Druckart
Überdruck
Werkstoff Messstoff-berührte Teile
Rohrfeder Bronze, Federträger Messing
Monel
Edelstahl 1.4404 (316L)
Gehäuseausführung
Sicherheitsgehäuse mit bruchfester Trennwand und ausblasbarer Rückwand
Schutzart
IP54
