1279 Duragauge Prozessmanometer
1279 Duragauge Prozessmanometer

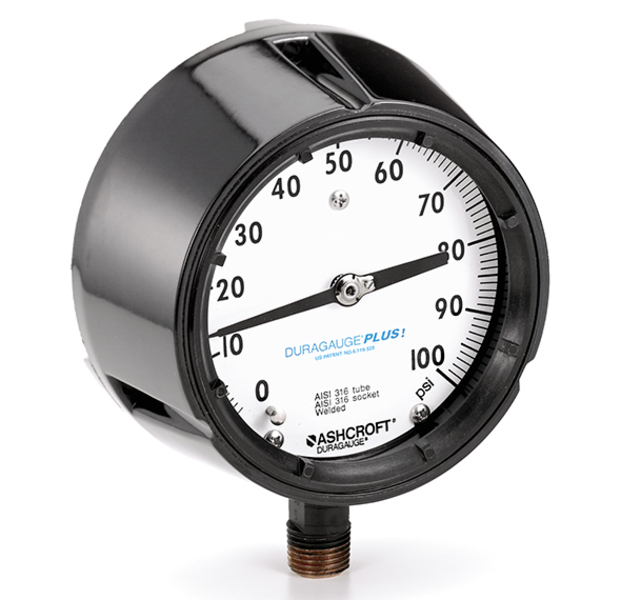

Das Ashcroft® Prozessmanometer Duragauge® 1279 gewährleistet eine hohe Zuverlässigkeit, Sicherheit und Leistungsfähigkeit.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
Das Duragauge® Prozessmanometer 1279 ist für Anwendungen ideal geeignet, für die eine zuverlässige Druckmessung Bedingung ist:
Downloads
Datenblätter
Installation & Wartung
Industriebroschüren
Auswahlhilfen
Produkt- & Technische Informationen
- 📄 tip-page-measuring-pressure-on-ammonia-appliations-tip-0001.pdf 🇫🇷
- 📄 Product Information Page Temperature Switch Q and A SW-PI-59 🇬🇧
- 📄 TIP Measuring Pressure on Ammonia Applications 🇬🇧
- 📄 Product Information Page Welding an Instrument to a Diaphragm Seal ASH-PI-62B 🇬🇧
- 📄 Product Information Page Use of Steel Bourdon Tubes in Duragauges DU-PI-68 🇬🇧
- 📄 Product Information Page Stress Corrosion Cracking Resistance of K500 Monel vs Monel 400 in Hydrofluoric Acid DU-PI-73 🇬🇧
- 📄 Product Information Page Safety Concerns Using Repaired and Reconditioned Pressure Gauges ASH-PI-58A 🇬🇧
- 📄 Product Information Page Receiver Gauge and False Reading Gauge Dial ASH-PI-45 🇬🇧
- 📄 Product Information Page Range Tables 🇬🇧
- 📄 Product Information Page Product for Sour Oilfield NACE MRO0175 and Sour Petroleum Refining Operations NACE MRO0103 ASH-PI-60D 🇬🇧
- 📄 Product Information Page Magnetism for Corrosive Applications Hydrogen ASH-PI-38 🇬🇧
- 📄 Product Information Page Magnetism of Nickel Copper Alloy DU-PI-64 🇬🇧
- 📄 Product Information Page High pressure Connection ASH-PI-61A 🇬🇧
- 📄 Product Information Page Gauges and Diaphragm Seals for Hydrogen Service DU-PI-46 🇬🇧
- 📄 Product Information Page Gauge Throttle Screw Selection ASH-PI-7A 🇬🇧
- 📄 Product Information Page Gauge Storage and Shelf Life ASH-PI-59 🇬🇧
- 📄 Product Information Page Gauge Safety ASH-PI-36 🇬🇧
- 📄 Product Information Page Gauge Low Temperature and Cryogenic Instrument ASH-PI-21D 🇬🇧
- 📄 Product Information Page Duragauge Underwater Applications DU-PI-19A 🇬🇧
- 📄 Product Information Page Duragauge Safety Results on Solid Front Gauge DU-PI-32 🇬🇧
- 📄 Product Information Page Duragauge Movement Repair DU-PI-61C 🇬🇧
- 📄 Product Information Page Duragauge Dial Testing DU-PI-42 🇬🇧
- 📄 Product Information Page Duragauge Bourdon Tubing DU-PI-25A 🇬🇧
- 📄 Product Information Page Bourdon Rupture Proof Overpressure ASH-42D 🇬🇧
- 📄 Product Information Page Artwork Submittal Requirements for Custom Dials ASH-PI-63 🇬🇧
- 📄 Product Information Page Ammonia Applications ASH-PI-52 🇬🇧
- 📄 Product Information Page 316 Stainless Steel Bourdon Tube Hysterisis Error DU-PI-48B 🇬🇧
- 📄 Product Information Page 1/4″ High Pressure Tubing Connection DU-PI-24A 🇬🇧
- 📄 Custom dial artwork submital – ASH-PI-63 🇬🇧
Zeichnungen & Modelle
- 📄 Drawing Duragauge 45 1279 L 🇬🇧
- 📄 Drawing Duragauge 45 1279 09L 🇬🇧
- 📄 Drawing Duragauge 45 1279 04L X56 🇬🇧
- 📄 Drawing Duragauge 45 1279 04L with Snubber 🇬🇧
- 📄 Drawing Duragauge 45 1279 04L 🇬🇧
- 📄 Drawing Duragauge 45 1279 04B X56 🇬🇧
- 📄 Drawing Duragauge 45 1279 04B 🇬🇧
- 📄 Drawing Duragauge 45 1279 02L X56 🇬🇧
- 📄 Drawing Duragauge 45 1279 02L 🇬🇧
- 📄 Drawing Duragauge 45 1279 02B X56 🇬🇧
- 📄 Drawing Duragauge 1279 02B 🇬🇧
- 📄 Ashcroft 1279 Duragauge Zeichnungsindex 🇬🇧
Das Ashcroft® 4 1/2″ Prozessmanometer Duragauge® 1279 gewährleistet mit seiner durchdachten Bauart eine hohe Sicherheit und Zuverlässigkeit. Das Sicherheitsgehäuse hat eine bruchfeste Trennwand, das Druckmesssystem 10 Jahre Garantie.
Hauptmerkmale
Rotary-Segmentwerk aus Edelstahl 400 mit Teflon®-Beschichtung
Große Auswahl an Rohrfeder- und Federträger-Werkstoffen sowie Messbereichen
Einfach justierbarer Mikrometerzeiger
PLUS!™ Performance (optional)
Märkte und Anwendungen
Öl und Gas
Offshore-Öl und -Gas
Raffinerie
Erdgastransport und Flüssiggas (LNG)
Chemie und Petrochemie
Wasser und Abwasser
Messbereiche
Vakuum
Kombinierte Messbereiche
1 ... 2000 bar
Prozessanschluss Bauart
Geschraubt
Dämpfung
Flüssigkeitsfüllung
PLUS!™ Performance
Drosselschraube
Nenngröße
4 1/2"
Genauigkeit
0,5% der Messspanne (ASME B40.100 Grade 2A)
Werkstoff Messstoff-berührte Teile
Rohrfeder Bronze, Federträger Messing
Monel
Edelstahl 1.4404 (316L)
Druckart
Überdruck
Gehäuseausführung
Sicherheitsgehäuse mit bruchfester Trennwand und ausblasbarer Rückwand
Schutzart
IP65
IP66 (optional)
Werkstoff Gehäuse
Phenolharz, Polykarbonat Ring und Rückwand
Prozessanschlusslage
Unten
Rückseitig unten
Montageart
Direktmontage
Tafeleinbau
2" Rohrschelle
Wandmontage
