Vortex Thermowell
Vortex Thermowell

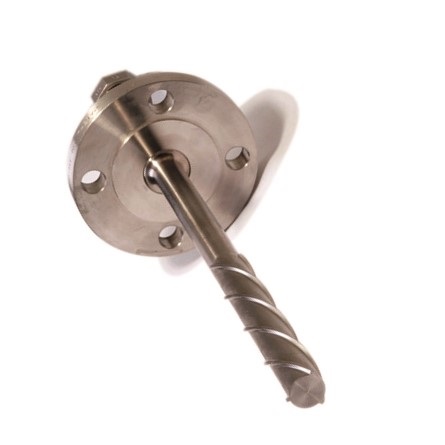

Vortex thermowells isolate and protect a temperature instrument’s sensing element from pressurized, high velocity and corrosive media. They are used when standard Flanged Thermowells cannot pass ASME PTC 19.3 TW-2016. The helical Strake is designed by using Computational Fluid Dynamic analysis. They ensure longer life and accurate measurement while allowing the sensing instrument to be removed without shutting down the process. A wide selection of materials, sizes and dimensions are available.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
Downloads
Data Sheets
Industry Brochures
Selection Guides
Product + Technical Information
Vortex thermowells isolate and protect a temperature instrument’s sensing element from pressurized, high velocity and corrosive media. They are used when standard Flanged Thermowells cannot pass ASME PTC 19.3 TW-2016. The helical Strake is designed by using Computational Fluid Dynamic analysis. They ensure longer life and accurate measurement while allowing the sensing instrument to be removed without shutting down the process. A wide selection of materials, sizes and dimensions are available.
Key Features
Full penetration welds on flanged thermowell
Helical strake design
No need for velocity collars
CFD (Computational Fluid Dynamic) analysis provided for challenging applications
One-piece bar stock construction
Selection of wetted materials
Material certificates to EN 10204:2004 3.1
Stamped with mil traceable materials and heat number
Markets & Applications
Chemical and Petrochemical
Energy
Food and Beverage
Oil and Gas
Refinery
Shank Style
Straight
Process Connection Style
Flange according to ASME B16.5
Bore Size
6.6 mm (0.260"), 9.8 mm (0.385"), 6 mm, 8 mm
Options
Cap and Chain
Lagging
Instrument Connection Style
Threaded
Process Connection Size
1 1/2", 2"
Wetted Parts Material
Stainless steel 316L (1.4404)
Monel
Hastelloy C
Duplex
Inconel
Hastelloy B
Carpenter 20 (2.4660)
Stainless steel 304 (1.4301)
