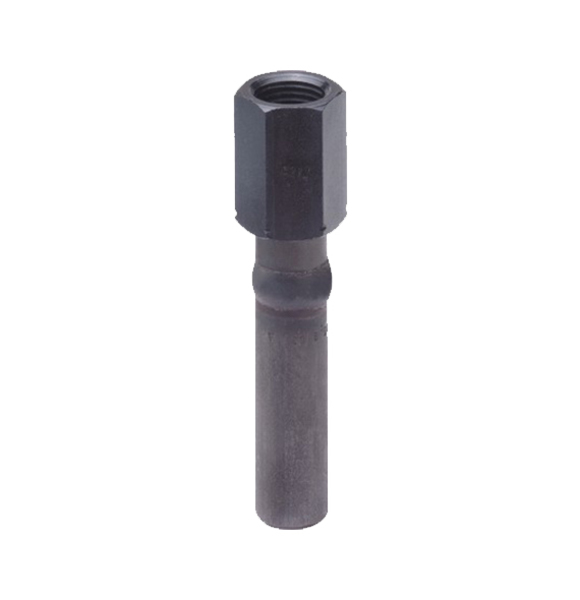

Pipe Connector
Pipe Connector
Straight Pipes and 90° Elbows are used when gauge syphons are not necessary due to the service conditions.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
The Pipe Connector is ideal where process protection is essential:
Process Market:
- Oil and Gas
- Refineries
- Chemical and Petrochemical
- Water and Wastewater
Process Applications:
- Biogas and Biodiesel
Downloads
Data Sheets
Drawings + Models
- 📄 Drawing Pipe connector SCH160 PC B 50 100 🇬🇧
- 📄 Drawing Pipe connector SCH80 PC B 50 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC B 81 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC B 50 150 🇬🇧
- 📄 Drawing Pipe connector 00 PC B 50 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC A 81 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC A 50 100 🇬🇧
Straight Pipes and 90° Elbows are used when gauge siphons are not necessary due to the service conditions. The Straight Pipe is used for vertical installations. The 90° Elbow is used for horizontal installations.
Key Features
Markets & Applications
Chemical and Petrochemical
Energy
Oil and Gas
Machine Automation
Hydrogen and Technical Gases
Pumps and Compressors
Process Connection Style
Welded
Instrument Connection Style
Threaded
Pressure Rating
PN250
Wetted Parts Material
Steel
Stainless steel 316Ti (1.4571)
Data Sheets
Drawings + Models
- 📄 Drawing Pipe connector SCH160 PC B 50 100 🇬🇧
- 📄 Drawing Pipe connector SCH80 PC B 50 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC B 81 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC B 50 150 🇬🇧
- 📄 Drawing Pipe connector 00 PC B 50 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC A 81 100 🇬🇧
- 📄 Drawing Pipe connector 00 PC A 50 100 🇬🇧
