80 Wafer Isolation Ring

80 Wafer Isolation Ring

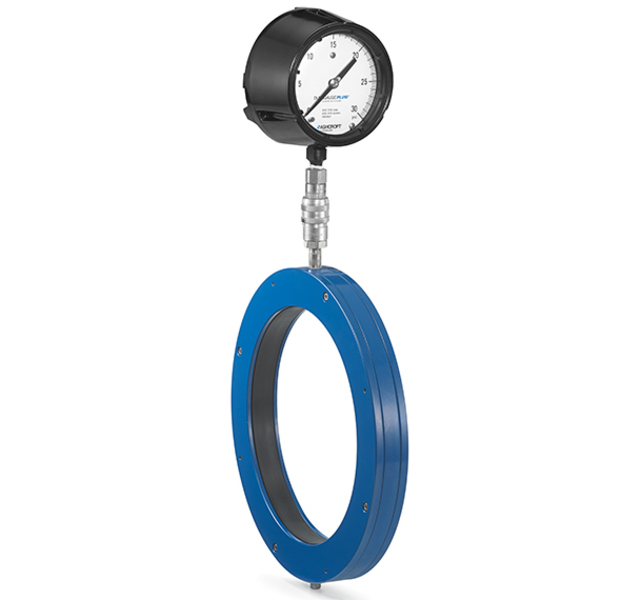

The Ashcroft® 80 isolation ring or isolation device is mounted inline with process piping.
The Ashcroft® 80 isolation ring is mounted inline with process piping. Used for process protection of measuring instruments, the ring-design eliminates process accumulation, assuring accurate pressure readings. Ideal when continuous pressure measurement is needed.

Key Features

360° sensing flexible inner-liner; no process deadleg

Safe Quick Release™ (optional) enables instrument removal without loss of fill or process shutdown

Needle valve (optional) dampens pulsation effects

Retrofit end plates (optional) allows easy replacement of other manufacturer models

Markets & Applications

Pulp and Paper

Water and Wastewater

Mining

  • Specifications
  • Downloads

Wetted Parts Material

End Plate: Carbon steel, 316L Stainless Steel, PVDF, Acetal

Flexible Liner: Buna, PTFE, EPDM, Natural rubber, and Viton®

Case or Body Material

Stainless steel 316L (1.4404)

Steel, powder coated

Process Connection Style

Flange according to ASME B16.5, wafer design

Process Connection Size

2" ... 20"

Accuracy

Added Tolerance ±0.5% typical

Instrument Connection Style

Threaded

Pressure Rating

150, 300 lbs.
