DT-ASME Truncated Flanged Diaphragm Seal
DT-ASME Truncated Flanged Diaphragm Seal

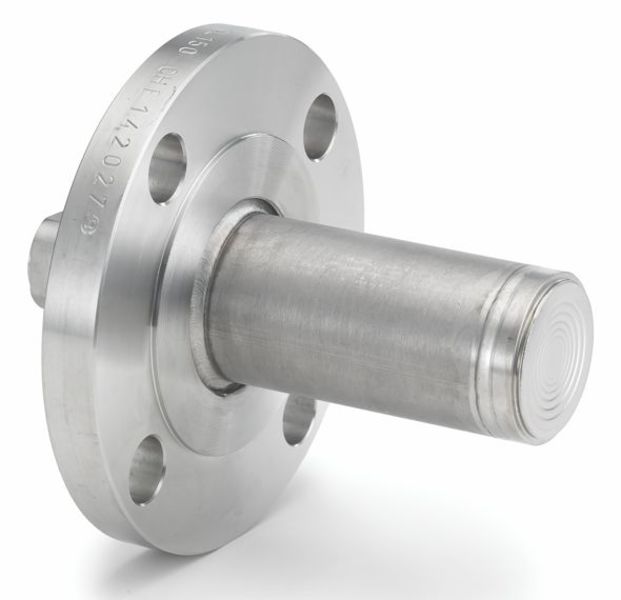

The Ashcroft® truncated flanged diaphragm seal model DT protects pressure measuring instruments on isolated pipes or tanks.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
The type DT truncated diaphragm seals are ideal where process protection is essential:
Downloads
Data Sheets
Installation + Maintenance
Declaration of Conformity
Product + Technical Information
- 📄 Product Information Page DS-PI-82 pi-page-minimum-maximum-pressures-for-diaphragm-seal EN 03-2023 🇬🇧
Safety Data Sheets
The Ashcroft® truncated flanged diaphragm seal model DT protects pressure measuring instruments on isolated pipes or tanks. Used when process compatibility is required, these are also applied when media exhibits high temperature or the potential to clog an instrument connection. Ideal for satisfying many challenging applications.
Key Features
Material certificates to EN 10204:2004 3.1
Flush-mounted diaphragm prevents clogging of process media
NACE compliant assemblies
Designed for flush mounting in insulated pipes and tanks
Rupture protected due to embedded convolution behind the diaphragm
Selection of wetted materials
Markets & Applications
Oil and Gas
NACE Compliant Processes (Sour Gas Separation)
Refinery
Machine Automation
Pumps and Compressors
Chemical and Petrochemical
Energy
Biogas and Biodiesel
Process Connection Style
Flange according to ASME B16.5
Process Connection Size
2" ... 4"
Accuracy
Added Tolerance ±0.5% typical
Instrument Connection Style
Welded
Threaded
Wetted Parts Material
Hastelloy C
PTFE coated
Stainless steel 316L (1.4404)
Tantalum
Case or Body Material
Stainless steel 316L (1.4404)
Pressure Rating
150 ... 1500 lbs.
Data Sheets
Installation + Maintenance
Declaration of Conformity
Product + Technical Information
- 📄 Product Information Page DS-PI-82 pi-page-minimum-maximum-pressures-for-diaphragm-seal EN 03-2023 🇬🇧
Safety Data Sheets
