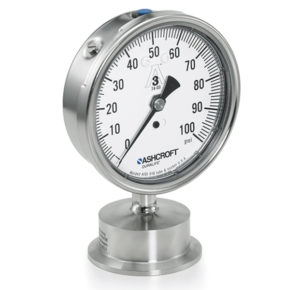

1036 Sanitary Pressure Gauge
1036 Sanitary Pressure Gauge
The Ashcroft® 1036 inline sanitary gauge satisfies stringent sanitary requirements with its unique design.
Features & Properties
Use & Application
Downloads
Features & Properties
Use & Application
The 1036 inline sanitary pressure gauge is ideal where system integrity and reliable pressure measurement is essential:
Downloads
Data Sheets
Declaration of Conformity
Industry Brochures
Selection Guides
Product + Technical Information
- 📄 Product Information Page Zero External Adjustment SA-PI-02A 🇬🇧
- 📄 Product Information Page Polysulfone Window SA-PI-1A 🇬🇧
- 📄 Product Information Page Gauge Storage and Shelf Life ASH-PI-59 🇬🇧
- 📄 Product Information Page Artwork Submittal Requirements for Custom Dials ASH-PI-63 🇬🇧
Drawings + Models
Safety Data Sheets

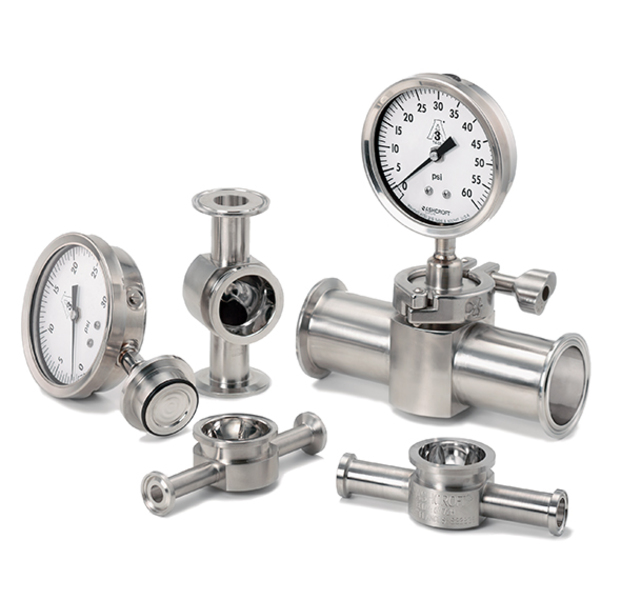

The Ashcroft® 1036 inline 3A approved sanitary gauge satisfies stringent sanitary requirements with its unique design. Mated with the type 1037 Inline fitting, this assembly virtually eliminates process deadleg, assuring contamination is minimized. An ideal instrument for reliability and process integrity. Available with material traceable certification to EN 10204 3.1. An electropolished diaphragm and housing make it an ideal solution for applications in the food, pharmaceutical and bio-technical industries.
Key Features
Electropolished diaphragm and housing
Material certificates to EN 10204:2004 3.1
Clean or steam in place (CIP/SIP)
PLUS!™ Performance (optional)
Autoclave or sterilize with 3½˝ dial with polysulfone window option
External zero adjustment (optional)
True Zero™ indication, a unique safety feature
Markets & Applications
Food and Beverage
Biotech
Filtration Monitoring
Pharmaceuticals
Medical Equipment
Case or Body Material
Stainless steel 304 (1.4301)
Pressure Type
Gauge pressure
Process Connection Location
Lower
Mounting
Stem
Dampening
Liquid fill
PLUS!™ Performance
Case Style
Open front case
Dial Size
3 1/2"
Ranges
1 ... 40 bar / 600 psi
Compound
Wetted Parts Material
Stainless steel 316L (1.4404)
Process Connection Style
1 1/2˝ Triclamp®
Ingress Protection
IP65
Accuracy
2½˝, 3½˝: All ranges over 100 psi Dry: ±1.5%, Liquid Filled or XLL: ±2.0%
2½˝, 3½˝: All ranges to 100 psi Dry: ±2%, Liquid Filled or XLL: ±2.5%
